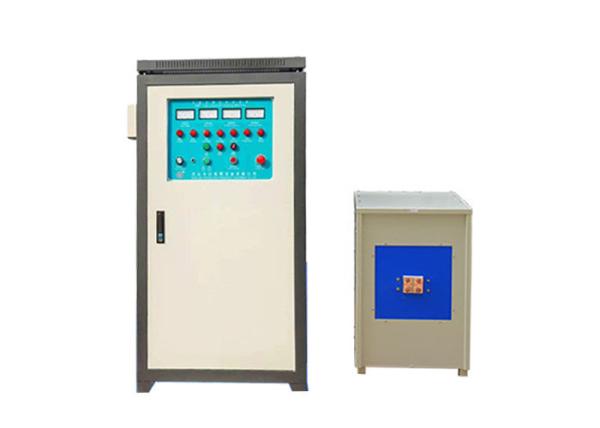

Medium Frequency Induction Heating Equipment Medium Frequency
Induction Equipment For Quenching And Annealing Of Metals
Product overview of intermediate frequency induction heating
equipment:
Using medium frequency heating machine to anneal can achieve the
effect of locally changing the metallographic structure. When
large-area metal plates and profiles need local annealing, we can
make induction coils according to the annealing shape to achieve
local annealing, and it will not affect other parts.
Technical parameters of high frequency induction heating equipment:
Model: LC-ZP-190KW
Maximum input current: 190A
Input power: 185kW
Oscillation frequency: 24khz
Input voltage: 370v
Host volume:366mm×366mm×466mm
Cooling water pressure: 0.1-0.3mpa
Cooling water flow (main engine): 15L / min (0.1MPa)
Cooling water flow (transformer): 18L / min (0.1MPa)
Water temperature protection point: 50 ℃
Host weight: 40 ± 5% kg
Efficiency: 90%
Application range of medium frequency induction heating equipment:
(1) Welding materials: red copper and brass welding, tungsten steel
and stainless steel welding, iron copper welding, copper aluminum
welding, etc
(2) Daily necessities industry: welding of glasses, jewelry,
watches and clocks, fishing gear, fishing tackle, hardware and
other products
(3) Tool industry: saw tooth welding of cemented carbide saw blade,
tool welding, heat treatment of cemented carbide tool products
(4) Electronic industry: thermal assembly of motor rotor, thermal
matching of tool holder, silver welding and tin welding of
electrode, vibrator welding, connector welding, etc
(5) Entertainment products: pipe accessories welding, golf head
welding, etc
(6) Metal embedding: bulb electrode, etc
